Assigning Simulated FRBs to Host Galaxies

This notebook demonstrates how to use the astropath.simulations.assign_host module to assign simulated FRBs to host galaxies from a catalog.

The assignment process:

  1. Matches FRBs to galaxies by apparent magnitude (brighter FRBs → brighter galaxies)

  2. Randomly places FRBs within their host galaxy

  3. Applies realistic localization errors to create observed coordinates

Output includes:

  • Observed FRB coordinates (with localization error)

  • True FRB coordinates (within the galaxy)

  • Host galaxy properties (ID, magnitude, size)

  • Offset statistics (galaxy offset, localization error)

[1]:

import os
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
from pathlib import Path
from matplotlib.patches import Ellipse


# Set up plotting style
plt.rcParams['figure.figsize'] = (10, 6)
plt.rcParams['font.size'] = 12

[2]:

from astropath.simulations import generate_frbs, assign_frbs_to_hosts
from astropath.simulations.generate_frbs import load_chime_cat1_DMeg

/home/xavier/Projects/FRB/FRB/frb/halos/hmf.py:51: UserWarning: hmf_emulator not imported.  Hope you are not intending to use the hmf.py module..
  warnings.warn("hmf_emulator not imported.  Hope you are not intending to use the hmf.py module..")

Step 1: Generate FRB Population

First, we generate a population of FRBs using generate_frbs(). This gives us FRBs with realistic DM, redshift, and host galaxy magnitude distributions.

[3]:

# Generate 500 CHIME FRBs following the Cat1 DM distribution
n_frbs = 1000
seed = 42

#frbs = generate_frbs(n_frbs, 'CHIME', seed=seed)
DMeg = load_chime_cat1_DMeg()
frbs = generate_frbs(n_frbs, 'CHIME', seed=seed,
        dm_catalog=DMeg, dm_range=(0., 3000.))

print(f"Generated {len(frbs)} FRBs")
print(f"\nFRB properties:")
print(f"  DM range:  {frbs['DMeg'].min():.0f} - {frbs['DMeg'].max():.0f} pc/cm³")
print(f"  z range:   {frbs['z'].min():.3f} - {frbs['z'].max():.3f}")
print(f"  M_r range: {frbs['M_r'].min():.2f} - {frbs['M_r'].max():.2f}")
print(f"  m_r range: {frbs['m_r'].min():.2f} - {frbs['m_r'].max():.2f}")

frbs.head()

Loading P(DM,z) grid from /home/xavier/Projects/FRB/FRB/frb/data/DM/CHIME_pzdm.npz
Sampling DM values
Sampling redshifts
Sampling host galaxy absolute magnitudes
Using Lz values to sample host galaxy absolute magnitudes
Generated 1000 FRBs

FRB properties:
  DM range:  4 - 2421 pc/cm³
  z range:   0.010 - 2.156
  M_r range: -24.50 - -15.48
  m_r range: 10.94 - 28.64

[3]:
DMeg z M_r m_r
0 332.544726 0.129937 -21.388885 17.609148
1 1321.835444 1.159081 -21.443314 23.111602
2 702.774725 0.896607 -18.183908 25.684164
3 535.990017 0.598077 -21.433778 21.360838
4 165.368080 0.195489 -21.351292 18.620048

Step 2: Load Galaxy Catalog

We’ll use a real galaxy catalog if available (combined HSC/DECaLs/HECATE), otherwise create a mock catalog.

The catalog must have these columns:

  • ra, dec: Coordinates (degrees)

  • mag_best: Apparent r-band magnitude

  • half_light: Half-light radius (arcsec)

  • ID: Unique identifier

[4]:

def create_mock_galaxy_catalog(n_galaxies=10000, seed=42):
    """
    Create a mock galaxy catalog for demonstration.
    This is used as a fallback if real catalog is not available.
    """
    np.random.seed(seed)

    # Create galaxies in a 2x2 degree field
    ra = np.random.uniform(150.0, 152.0, n_galaxies)
    dec = np.random.uniform(2.0, 4.0, n_galaxies)

    # Magnitude distribution (peaks around m_r ~ 21-22)
    mag_best = np.random.beta(a=2, b=5, size=n_galaxies) * 8 + 18
    mag_best = np.clip(mag_best, 18., 26.)

    # Half-light radii (log-normal distribution)
    half_light = np.random.lognormal(mean=np.log(0.5), sigma=0.5, size=n_galaxies)
    half_light = np.clip(half_light, 0.1, 3.0)

    df = pd.DataFrame({
        'ra': ra,
        'dec': dec,
        'mag_best': mag_best,
        'half_light': half_light,
        'ID': np.arange(n_galaxies)
    })

    return df


def load_galaxy_catalog(seed=42):
    """
    Load galaxy catalog - tries real catalog first, falls back to mock.

    Real catalog: $FRB_APATH/combined_HSC_DECaLs_HECATE_galaxies_hecatecut.parquet
    """
    # Try to load real catalog
    frb_apath = os.environ.get('FRB_APATH')

    if frb_apath is not None:
        catalog_path = Path(frb_apath) / 'combined_HSC_DECaLs_HECATE_galaxies_hecatecut.parquet'

        if catalog_path.exists():
            print(f"Loading real galaxy catalog from:")
            print(f"  {catalog_path}")
            galaxies = pd.read_parquet(catalog_path)

            # Verify required columns
            required_cols = ['ra', 'dec', 'mag_best', 'half_light', 'ID']
            if all(col in galaxies.columns for col in required_cols):
                print(f"  ✓ Loaded {len(galaxies):,} galaxies from real catalog")
                return galaxies, True
            else:
                print(f"  ⚠ Missing required columns, falling back to mock catalog")

    # Fall back to mock catalog
    print("Creating mock galaxy catalog...")
    print("  (Set $FRB_APATH to use real HSC/DECaLs/HECATE catalog)")
    galaxies = create_mock_galaxy_catalog(n_galaxies=10000, seed=seed)
    print(f"  Created {len(galaxies):,} mock galaxies")
    return galaxies, False


# Load catalog (real or mock)
galaxies, is_real = load_galaxy_catalog(seed=42)

print(f"\nGalaxy catalog properties:")
print(f"  Type:       {'Real (HSC/DECaLs/HECATE)' if is_real else 'Mock'}")
print(f"  N_galaxies: {len(galaxies):,}")
print(f"  RA range:   {galaxies['ra'].min():.2f} - {galaxies['ra'].max():.2f} deg")
print(f"  Dec range:  {galaxies['dec'].min():.2f} - {galaxies['dec'].max():.2f} deg")
print(f"  Mag range:  {galaxies['mag_best'].min():.2f} - {galaxies['mag_best'].max():.2f}")
print(f"  Size range: {galaxies['half_light'].min():.2f} - {galaxies['half_light'].max():.2f} arcsec")

galaxies.head()

Loading real galaxy catalog from:
  /home/xavier/Projects/FRB/data/Catalogs/combined_HSC_DECaLs_HECATE_galaxies_hecatecut.parquet
  ✓ Loaded 2,297,005 galaxies from real catalog

Galaxy catalog properties:
  Type:       Real (HSC/DECaLs/HECATE)
  N_galaxies: 2,297,005
  RA range:   0.17 - 359.92 deg
  Dec range:  -22.67 - 79.20 deg
  Mag range:  9.75 - 28.00
  Size range: 0.00 - 111.73 arcsec

[4]:
DECaL_r DECaL_ID ra dec gaia_pointsource shapedev_r shapeexp_r type mag ang_size ... logSFR_GSW logM_GSW MIN_SNR METAL FLAG_METAL CLASS_SP AGN_S17 AGN_HEC mag_best half_light
0 20.342830 8.796112e+15 33.714628 -7.532246 0.0 0.794133 0.000000 DEV 20.342830 0.794133 ... NaN NaN NaN NaN NaN NaN None None 20.342830 0.794133
1 21.302168 8.796112e+15 33.543950 -7.531977 0.0 0.000000 1.474610 EXP 21.302168 1.474610 ... NaN NaN NaN NaN NaN NaN None None 21.302168 1.474610
2 18.706774 8.796112e+15 33.731347 -7.531399 0.0 0.000000 5.484947 EXP 18.706774 5.484947 ... NaN NaN NaN NaN NaN NaN None None 18.706774 5.484947
3 21.775625 8.796112e+15 33.730953 -7.533122 0.0 0.000000 1.568451 EXP 21.775625 1.568451 ... NaN NaN NaN NaN NaN NaN None None 21.775625 1.568451
4 21.368427 8.796112e+15 33.731264 -7.529217 0.0 0.000000 4.333760 EXP 21.368427 4.333760 ... NaN NaN NaN NaN NaN NaN None None 21.368427 4.333760

5 rows × 122 columns

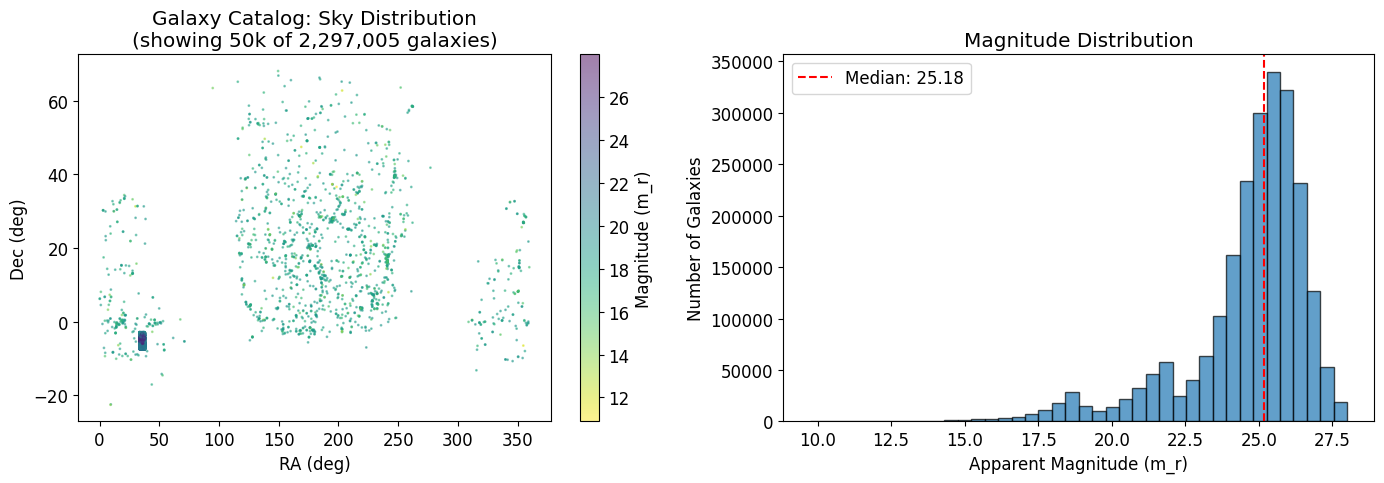

Visualize Galaxy Catalog

[5]:

fig, axes = plt.subplots(1, 2, figsize=(14, 5))

# Sky distribution
ax = axes[0]

# For real catalog, sample subset for visualization (too many points)
if len(galaxies) > 50000:
    plot_galaxies = galaxies.sample(n=50000, random_state=42)
    plot_title = f'Galaxy Catalog: Sky Distribution\n(showing 50k of {len(galaxies):,} galaxies)'
else:
    plot_galaxies = galaxies
    plot_title = 'Galaxy Catalog: Sky Distribution'

scatter = ax.scatter(plot_galaxies['ra'], plot_galaxies['dec'],
                     c=plot_galaxies['mag_best'], s=1, alpha=0.5, cmap='viridis_r')
ax.set_xlabel('RA (deg)')
ax.set_ylabel('Dec (deg)')
ax.set_title(plot_title)
plt.colorbar(scatter, ax=ax, label='Magnitude (m_r)')

# Magnitude distribution
ax = axes[1]
ax.hist(galaxies['mag_best'], bins=40, alpha=0.7, edgecolor='black')
ax.set_xlabel('Apparent Magnitude (m_r)')
ax.set_ylabel('Number of Galaxies')
ax.set_title('Magnitude Distribution')
ax.axvline(galaxies['mag_best'].median(), color='red', linestyle='--',
           label=f"Median: {galaxies['mag_best'].median():.2f}")
ax.legend()

plt.tight_layout()
plt.show()
../_images/nb_Simulate_Assign_FRBs_8_0.png

Step 3: Assign FRBs to Host Galaxies

Now we assign FRBs to host galaxies. The key parameter is the localization error ellipse (a, b, PA):

  • a: Semi-major axis (arcsec)

  • b: Semi-minor axis (arcsec)

  • PA: Position angle (degrees, East of North)

We’ll use CHIME-like localization: ~0.5” × 0.3” ellipse.

[6]:

# CHIME-like localization
localization = (0.5, 0.3, 45.)  # (a, b, PA) in arcsec, arcsec, degrees

print(f"Localization error ellipse:")
print(f"  Semi-major axis (a): {localization[0]}\"")
print(f"  Semi-minor axis (b): {localization[1]}\"")
print(f"  Position angle:      {localization[2]}°")
print()

# Assign FRBs to hosts
assignments = assign_frbs_to_hosts(
    frb_df=frbs,
    galaxy_catalog=galaxies,
    localization=localization,
    scale=0.5, #trim_catalog=60*units.arcmin,
    #mag_range=(17., 28.),  # Only assign FRBs with hosts in this mag range
    seed=seed
)

print(f"\nSuccessfully assigned {len(assignments)} FRBs to hosts")
print(f"(Filtered from {len(frbs)} based on magnitude range)")

assignments.head(10)

Localization error ellipse:
  Semi-major axis (a): 0.5"
  Semi-minor axis (b): 0.3"
  Position angle:      45.0°

Assigning 1000 FRBs to hosts (filtered from 1000)
Iteration 1: 1000 FRBs remaining
  Brightest unassigned FRB: m_r = 10.94 deg
  Max magnitude separation: 0.6403 deg deg
Iteration 2: 9 FRBs remaining
  Brightest unassigned FRB: m_r = 15.21 deg
Iteration 3: 3 FRBs remaining
  Brightest unassigned FRB: m_r = 28.33 deg
Iteration 4: 2 FRBs remaining
  Brightest unassigned FRB: m_r = 28.33 deg
Iteration 5: 1 FRBs remaining
  Brightest unassigned FRB: m_r = 28.64 deg
Assignment complete after 5 iterations
Generating FRB positions within galaxies...
Applying localization error...

Successfully assigned 1000 FRBs to hosts
(Filtered from 1000 based on magnitude range)

[6]:
ra dec true_ra true_dec gal_ID gal_off mag half_light loc_off FRB_ID a b PA
0 37.089154 -6.054853 37.089347 -6.054824 8796112420800600 0.512163 17.609034 2.182818 0.698880 0 0.5 0.3 45.0
1 35.011052 -3.716714 35.010984 -3.716666 38554392407860101 0.644914 23.111603 0.428497 0.300721 1 0.5 0.3 45.0
2 35.636934 -5.041360 35.637147 -5.041240 37489519691325868 0.261397 25.684164 0.397035 0.875139 2 0.5 0.3 45.0
3 37.650019 -6.093941 37.649983 -6.094068 8796112420930500 0.471343 21.360844 1.032580 0.476924 3 0.5 0.3 45.0
4 122.136019 38.601062 122.135835 38.601035 8797227703930651 0.124636 18.620045 1.469550 0.527688 4 0.5 0.3 45.0
5 35.389044 -4.989786 35.389123 -4.989930 8796112796454681 0.025617 20.312939 0.302095 0.588104 5 0.5 0.3 45.0
6 191.133921 50.243986 191.134233 50.244006 8797230892582680 0.060900 16.888270 2.035483 0.723296 6 0.5 0.3 45.0
7 35.392441 -3.684912 35.392306 -3.685049 38554117529957271 0.369458 25.616621 0.367394 0.690091 7 0.5 0.3 45.0
8 122.081587 38.729600 122.081308 38.729418 8797227777852988 2.639463 18.471410 5.743693 1.022398 8 0.5 0.3 45.0
9 36.586242 -5.031810 36.586199 -5.031796 37494330054697820 0.393669 22.124790 0.639463 0.162957 9 0.5 0.3 45.0

Step 4: Analyze Results

Offset Statistics

[7]:

print("Offset Statistics")
print("=" * 60)

print("\nGalaxy Offset (FRB position from galaxy center):")
print(f"  Mean:   {assignments['gal_off'].mean():.3f}\"")
print(f"  Median: {assignments['gal_off'].median():.3f}\"")
print(f"  Std:    {assignments['gal_off'].std():.3f}\"")
print(f"  Max:    {assignments['gal_off'].max():.3f}\"")

print("\nLocalization Offset (observed - true position):")
print(f"  Mean:   {assignments['loc_off'].mean():.3f}\"")
print(f"  Median: {assignments['loc_off'].median():.3f}\"")
print(f"  Std:    {assignments['loc_off'].std():.3f}\"")
print(f"  Max:    {assignments['loc_off'].max():.3f}\"")

print("\nHost Galaxy Magnitudes:")
print(f"  Mean:   {assignments['mag'].mean():.2f}")
print(f"  Median: {assignments['mag'].median():.2f}")
print(f"  Range:  {assignments['mag'].min():.2f} - {assignments['mag'].max():.2f}")

Offset Statistics
============================================================

Galaxy Offset (FRB position from galaxy center):
  Mean:   0.558"
  Median: 0.302"
  Std:    1.031"
  Max:    18.265"

Localization Offset (observed - true position):
  Mean:   0.487"
  Median: 0.443"
  Std:    0.268"
  Max:    1.413"

Host Galaxy Magnitudes:
  Mean:   20.38
  Median: 20.56
  Range:  10.96 - 28.00

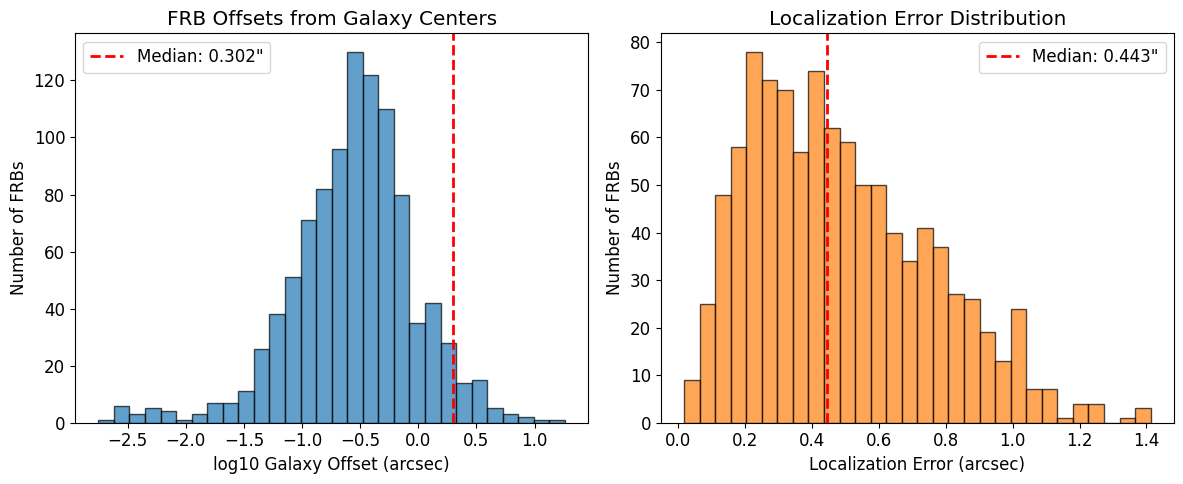

Offset Distributions

[8]:

fig, axes = plt.subplots(1, 2, figsize=(12, 5))

# Galaxy offsets
ax = axes[0]
ax.hist(np.log10(assignments['gal_off']), bins=30, alpha=0.7, edgecolor='black', color='#1f77b4')
ax.axvline(assignments['gal_off'].median(), color='red', linestyle='--', linewidth=2,
           label=f"Median: {assignments['gal_off'].median():.3f}\"")
ax.set_xlabel('log10 Galaxy Offset (arcsec)')
ax.set_ylabel('Number of FRBs')
#ax.set_xscale('log')
ax.set_title('FRB Offsets from Galaxy Centers')
ax.legend()

# Localization errors
ax = axes[1]
ax.hist(assignments['loc_off'], bins=30, alpha=0.7, edgecolor='black', color='#ff7f0e')
ax.axvline(assignments['loc_off'].median(), color='red', linestyle='--', linewidth=2,
           label=f"Median: {assignments['loc_off'].median():.3f}\"")
ax.set_xlabel('Localization Error (arcsec)')
ax.set_ylabel('Number of FRBs')
ax.set_title('Localization Error Distribution')
ax.legend()

plt.tight_layout()
plt.show()
../_images/nb_Simulate_Assign_FRBs_14_0.png

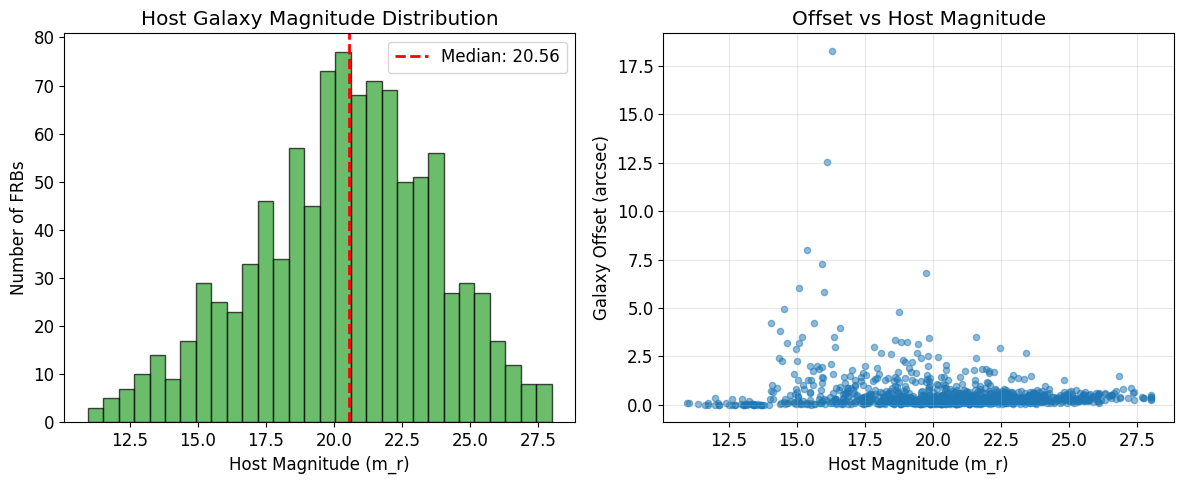

Host Galaxy Properties

[9]:

fig, axes = plt.subplots(1, 2, figsize=(12, 5))

# Host magnitude distribution
ax = axes[0]
ax.hist(assignments['mag'], bins=30, alpha=0.7, edgecolor='black', color='#2ca02c')
ax.axvline(assignments['mag'].median(), color='red', linestyle='--', linewidth=2,
           label=f"Median: {assignments['mag'].median():.2f}")
ax.set_xlabel('Host Magnitude (m_r)')
ax.set_ylabel('Number of FRBs')
ax.set_title('Host Galaxy Magnitude Distribution')
ax.legend()

# Offset vs magnitude
ax = axes[1]
ax.scatter(assignments['mag'], assignments['gal_off'], alpha=0.5, s=20, color='#1f77b4')
ax.set_xlabel('Host Magnitude (m_r)')
ax.set_ylabel('Galaxy Offset (arcsec)')
ax.set_title('Offset vs Host Magnitude')
ax.grid(alpha=0.3)

plt.tight_layout()
plt.show()
../_images/nb_Simulate_Assign_FRBs_16_0.png

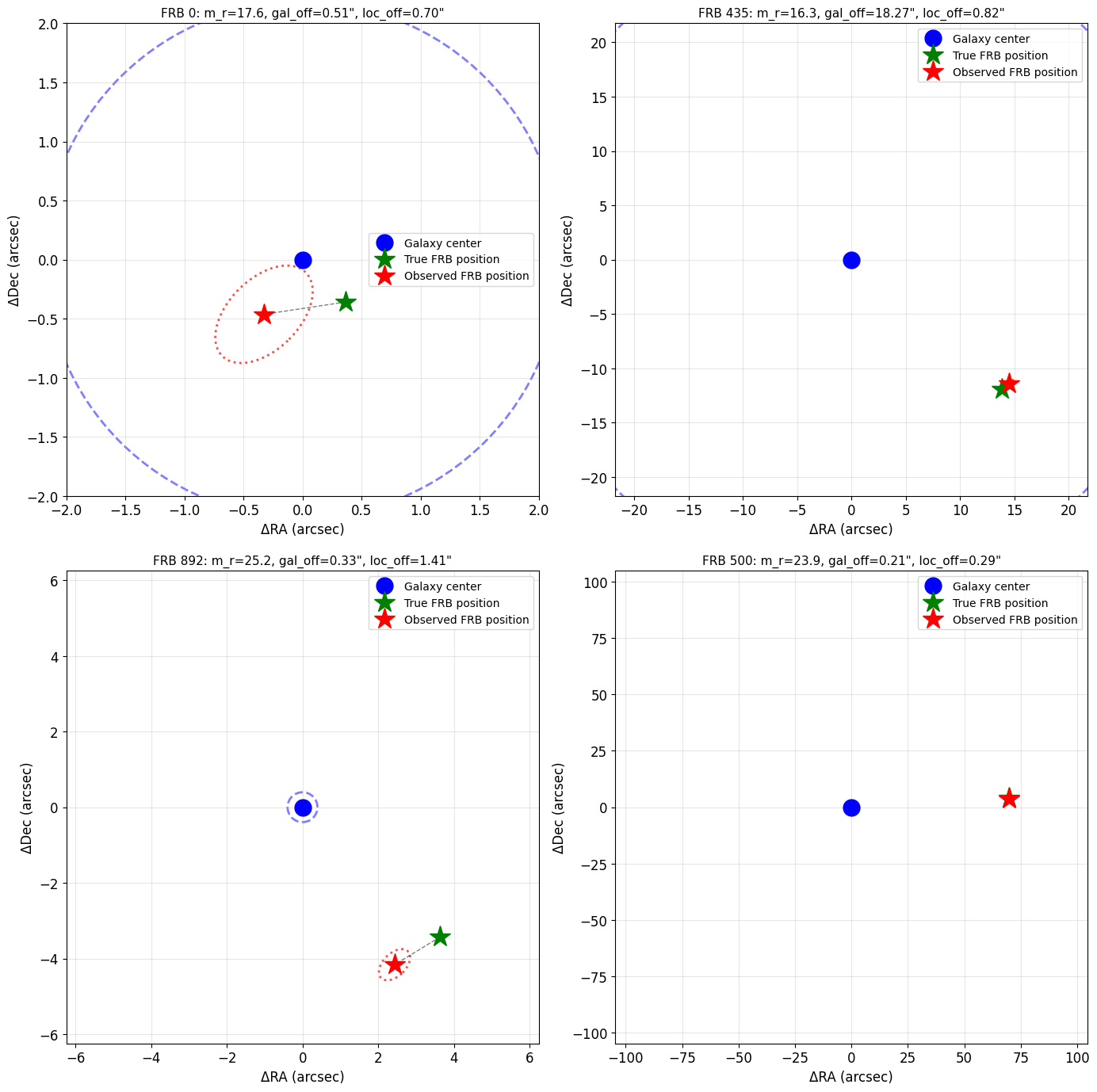

Step 5: Visualize FRB-Host Associations

Let’s visualize a few example FRB-host associations, showing:

  • Galaxy center (blue)

  • True FRB position in galaxy (green)

  • Observed FRB position with localization error (red)

  • Localization error ellipse

[10]:

def plot_frb_host_association(assignments, galaxies, idx, ax=None):
    """
    Plot a single FRB-host association showing galaxy, true position,
    observed position, and localization ellipse.
    """
    if ax is None:
        fig, ax = plt.subplots(figsize=(8, 8))

    # Get FRB and galaxy data
    frb = assignments.iloc[idx]
    galaxy = galaxies[galaxies['ID'] == frb['gal_ID']].iloc[0]

    # Convert to offset from galaxy center (in arcsec)
    # Approximate: 1 deg ≈ 3600 arcsec
    true_ra_off = (frb['true_ra'] - galaxy['ra']) * 3600 * np.cos(np.radians(galaxy['dec']))
    true_dec_off = (frb['true_dec'] - galaxy['dec']) * 3600

    obs_ra_off = (frb['ra'] - galaxy['ra']) * 3600 * np.cos(np.radians(galaxy['dec']))
    obs_dec_off = (frb['dec'] - galaxy['dec']) * 3600

    # Plot galaxy center
    ax.plot(0, 0, 'o', markersize=15, color='blue', label='Galaxy center', zorder=3)

    # Plot galaxy half-light circle
    circle = plt.Circle((0, 0), galaxy['half_light'], color='blue',
                        fill=False, linestyle='--', linewidth=2, alpha=0.5)
    ax.add_patch(circle)

    # Plot true FRB position
    ax.plot(true_ra_off, true_dec_off, '*', markersize=20, color='green',
            label='True FRB position', zorder=4)

    # Plot observed FRB position
    ax.plot(obs_ra_off, obs_dec_off, '*', markersize=20, color='red',
            label='Observed FRB position', zorder=5)

    # Plot localization error ellipse
    ellipse = Ellipse((obs_ra_off, obs_dec_off),
                      width=2*frb['a'], height=2*frb['b'],
                      angle=frb['PA'],
                      edgecolor='red', facecolor='none',
                      linewidth=2, linestyle=':', alpha=0.7)
    ax.add_patch(ellipse)

    # Connect true and observed positions
    ax.plot([true_ra_off, obs_ra_off], [true_dec_off, obs_dec_off],
            'k--', linewidth=1, alpha=0.5, zorder=2)

    # Set limits based on max offset
    max_offset = max(abs(true_ra_off), abs(true_dec_off),
                     abs(obs_ra_off), abs(obs_dec_off)) * 1.5
    max_offset = max(max_offset, 2.0)  # At least 2 arcsec
    ax.set_xlim(-max_offset, max_offset)
    ax.set_ylim(-max_offset, max_offset)

    ax.set_xlabel('ΔRA (arcsec)', fontsize=12)
    ax.set_ylabel('ΔDec (arcsec)', fontsize=12)
    ax.set_title(f'FRB {idx}: m_r={frb["mag"]:.1f}, '
                 f'gal_off={frb["gal_off"]:.2f}", loc_off={frb["loc_off"]:.2f}"',
                 fontsize=11)
    ax.legend(fontsize=10)
    ax.grid(alpha=0.3)
    ax.set_aspect('equal')

    return ax

# Plot 4 example associations
fig, axes = plt.subplots(2, 2, figsize=(14, 14))
axes = axes.flatten()

# Select FRBs with different characteristics
example_indices = [
    0,  # First FRB
    np.argmax(assignments['gal_off'].values),  # Largest galaxy offset
    np.argmax(assignments['loc_off'].values),  # Largest localization error
    len(assignments) // 2  # Middle FRB
]

for i, idx in enumerate(example_indices):
    plot_frb_host_association(assignments, galaxies, idx, ax=axes[i])

plt.tight_layout()
plt.show()
../_images/nb_Simulate_Assign_FRBs_18_0.png

Step 6: Comparing Different Localizations

Different surveys have different localization capabilities. Let’s compare CHIME, DSA, and ASKAP-like localizations.

[12]:

# Generate FRBs for different surveys
frbs_surveys = {
    'CHIME': generate_frbs(300, 'CHIME', seed=42),
    'DSA': generate_frbs(300, 'DSA', seed=42),
    'ASKAP': generate_frbs(300, 'ASKAP', seed=42)
}

# Define survey-specific localizations
localizations = {
    'CHIME': (0.1, 0.1, 45.),    # ~0.1" × 0.1" ellipse (HCO)
    'DSA': (1.0, 1.0, 0.),        # ~1.0" circular (less precision)
    'ASKAP': (0.5, 0.5, 30.)      # ~0.5" × 0.5" circular (medium)
}

# Assign FRBs to hosts for each survey
assignments_surveys = {}
for survey in ['CHIME', 'DSA', 'ASKAP']:
    print(f"\nAssigning {survey} FRBs...")
    assignments_surveys[survey] = assign_frbs_to_hosts(
        frb_df=frbs_surveys[survey],
        galaxy_catalog=galaxies,
        localization=localizations[survey],
        mag_range=(17., 28.),
        seed=42
    )
    print(f"  Assigned {len(assignments_surveys[survey])} FRBs")

Loading P(DM,z) grid from /home/xavier/Projects/FRB/FRB/frb/data/DM/CHIME_pzdm.npz
Sampling DM values
Sampling redshifts
Sampling host galaxy absolute magnitudes
Using Lz values to sample host galaxy absolute magnitudes
Loading P(DM,z) grid from /home/xavier/Projects/FRB/FRB/frb/data/DM/DSA_pzdm.npz
Sampling DM values
Sampling redshifts
Sampling host galaxy absolute magnitudes
Using Lz values to sample host galaxy absolute magnitudes
Loading P(DM,z) grid from /home/xavier/Projects/FRB/FRB/frb/data/DM/CRAFT_class_I_and_II_pzdm.npz
Sampling DM values
Sampling redshifts
Sampling host galaxy absolute magnitudes
Using Lz values to sample host galaxy absolute magnitudes

Assigning CHIME FRBs...
Assigning 269 FRBs to hosts (filtered from 300)
Iteration 1: 269 FRBs remaining
  Brightest unassigned FRB: m_r = 17.13 deg
  Max magnitude separation: 0.0001 deg deg
Assignment complete after 1 iterations
Generating FRB positions within galaxies...
Applying localization error...
  Assigned 269 FRBs

Assigning DSA FRBs...
Assigning 266 FRBs to hosts (filtered from 300)
Iteration 1: 266 FRBs remaining
  Brightest unassigned FRB: m_r = 17.08 deg
  Max magnitude separation: 0.0001 deg deg
Iteration 2: 1 FRBs remaining
  Brightest unassigned FRB: m_r = 22.44 deg
Assignment complete after 2 iterations
Generating FRB positions within galaxies...
Applying localization error...
  Assigned 266 FRBs

Assigning ASKAP FRBs...
Assigning 218 FRBs to hosts (filtered from 300)
Iteration 1: 218 FRBs remaining
  Brightest unassigned FRB: m_r = 17.01 deg
  Max magnitude separation: 0.0001 deg deg
Assignment complete after 1 iterations
Generating FRB positions within galaxies...
Applying localization error...
  Assigned 218 FRBs

Compare Localization Performance

[13]:

print("Localization Performance Comparison")
print("=" * 70)
print(f"{'Survey':<10} {'Ellipse (a×b)':<20} {'Med gal_off':<15} {'Med loc_off':<15}")
print("-" * 70)

for survey in ['CHIME', 'DSA', 'ASKAP']:
    loc = localizations[survey]
    assign = assignments_surveys[survey]
    print(f"{survey:<10} {loc[0]:.1f}\" × {loc[1]:.1f}\""
          f"{'':>6} {assign['gal_off'].median():.3f}\""
          f"{'':>6} {assign['loc_off'].median():.3f}\"")

Localization Performance Comparison
======================================================================
Survey     Ellipse (a×b)        Med gal_off     Med loc_off
----------------------------------------------------------------------
CHIME      0.1" × 0.1"       0.276"       0.117"
DSA        1.0" × 1.0"       0.243"       1.119"
ASKAP      0.5" × 0.5"       0.340"       0.567"

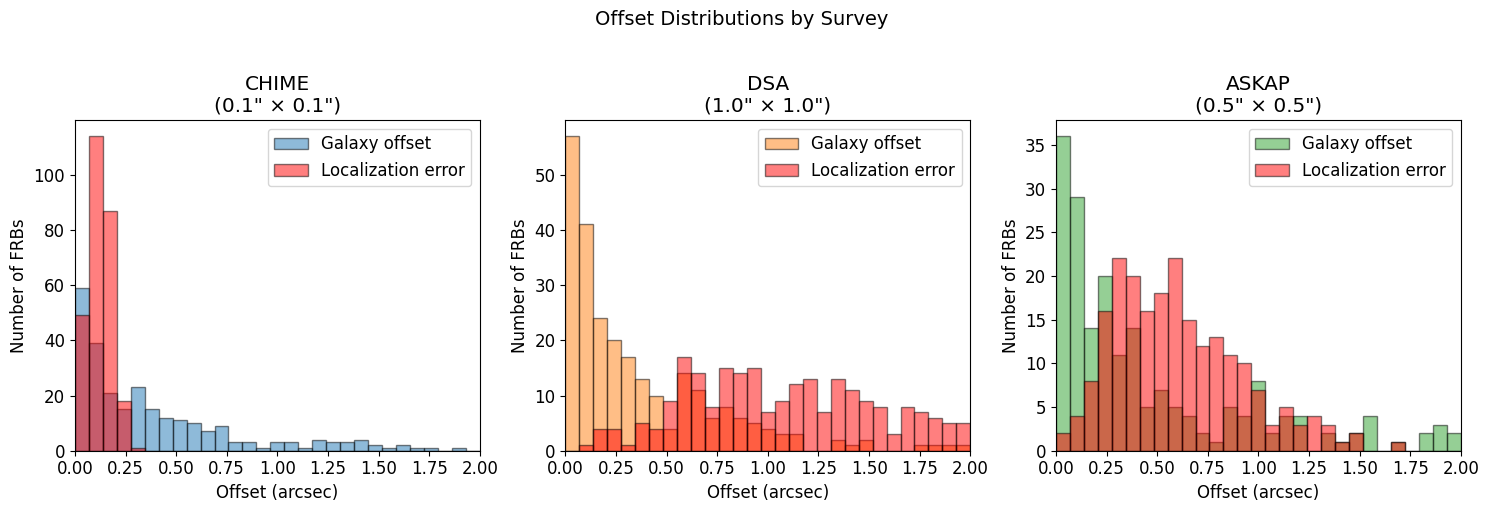

[14]:

fig, axes = plt.subplots(1, 3, figsize=(15, 5))
colors = ['#1f77b4', '#ff7f0e', '#2ca02c']

for ax, (survey, color) in zip(axes, zip(['CHIME', 'DSA', 'ASKAP'], colors)):
    assign = assignments_surveys[survey]

    # Plot both offsets
    bins = np.linspace(0, 2.0, 30)
    ax.hist(assign['gal_off'], bins=bins, alpha=0.5, label='Galaxy offset',
            color=color, edgecolor='black')
    ax.hist(assign['loc_off'], bins=bins, alpha=0.5, label='Localization error',
            color='red', edgecolor='black')

    ax.set_xlabel('Offset (arcsec)')
    ax.set_ylabel('Number of FRBs')
    ax.set_title(f'{survey}\n'
                 f'({localizations[survey][0]:.1f}" × {localizations[survey][1]:.1f}")')
    ax.legend()
    ax.set_xlim(0, 2.0)

plt.suptitle('Offset Distributions by Survey', fontsize=14, y=1.02)
plt.tight_layout()
plt.show()
../_images/nb_Simulate_Assign_FRBs_23_0.png

Step 7: Effect of Scale Parameter

The scale parameter controls how concentrated FRBs are near galaxy centers.

  • Smaller scale → more concentrated

  • Larger scale → more spread out

[15]:

# Compare different scale parameters
scales = [0.5, 1.0, 2.0]
assignments_scale = {}

for scale in scales:
    print(f"Assigning with scale={scale}...")
    assignments_scale[scale] = assign_frbs_to_hosts(
        frb_df=frbs_surveys['CHIME'][:200],  # Use subset for speed
        galaxy_catalog=galaxies,
        localization=(0.5, 0.3, 45.),
        scale=scale,
        mag_range=(17., 28.),
        seed=42
    )

Assigning with scale=0.5...
Assigning 181 FRBs to hosts (filtered from 200)
Iteration 1: 181 FRBs remaining
  Brightest unassigned FRB: m_r = 17.13 deg
  Max magnitude separation: 0.0001 deg deg
Assignment complete after 1 iterations
Generating FRB positions within galaxies...
Applying localization error...
Assigning with scale=1.0...
Assigning 181 FRBs to hosts (filtered from 200)
Iteration 1: 181 FRBs remaining
  Brightest unassigned FRB: m_r = 17.13 deg
  Max magnitude separation: 0.0001 deg deg
Assignment complete after 1 iterations
Generating FRB positions within galaxies...
Applying localization error...
Assigning with scale=2.0...
Assigning 181 FRBs to hosts (filtered from 200)
Iteration 1: 181 FRBs remaining
  Brightest unassigned FRB: m_r = 17.13 deg
  Max magnitude separation: 0.0001 deg deg
Assignment complete after 1 iterations
Generating FRB positions within galaxies...
Applying localization error...

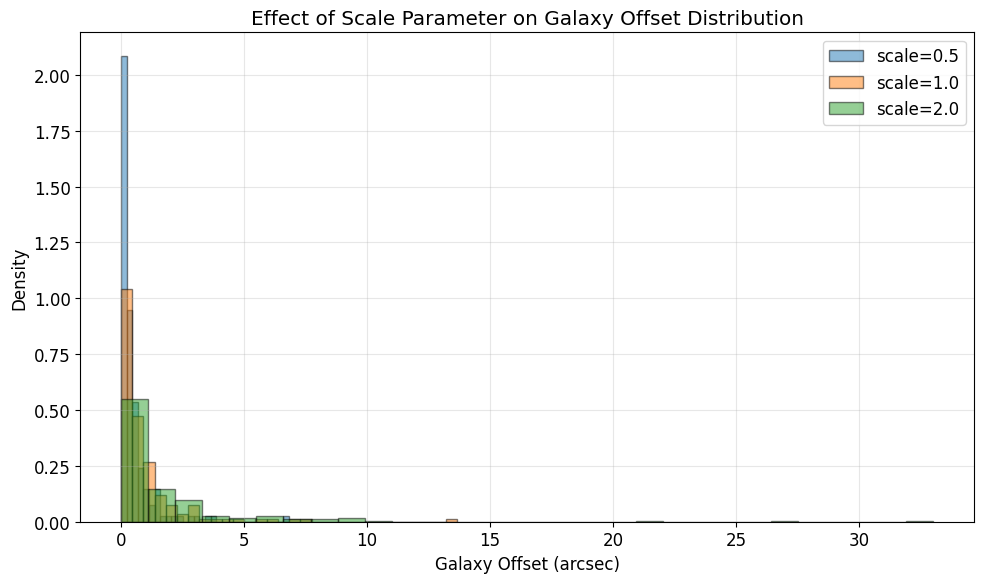

[16]:

fig, ax = plt.subplots(figsize=(10, 6))

colors = ['#1f77b4', '#ff7f0e', '#2ca02c']
for scale, color in zip(scales, colors):
    assign = assignments_scale[scale]
    ax.hist(assign['gal_off'], bins=30, alpha=0.5, label=f'scale={scale}',
            color=color, edgecolor='black', density=True)

ax.set_xlabel('Galaxy Offset (arcsec)')
ax.set_ylabel('Density')
ax.set_title('Effect of Scale Parameter on Galaxy Offset Distribution')
ax.legend()
ax.grid(alpha=0.3)

plt.tight_layout()
plt.show()

# Print statistics
print("\nMedian galaxy offsets:")
for scale in scales:
    median_off = assignments_scale[scale]['gal_off'].median()
    print(f"  scale={scale}: {median_off:.3f}\"")
../_images/nb_Simulate_Assign_FRBs_26_0.png

Median galaxy offsets:
  scale=0.5: 0.250"
  scale=1.0: 0.500"
  scale=2.0: 0.766"

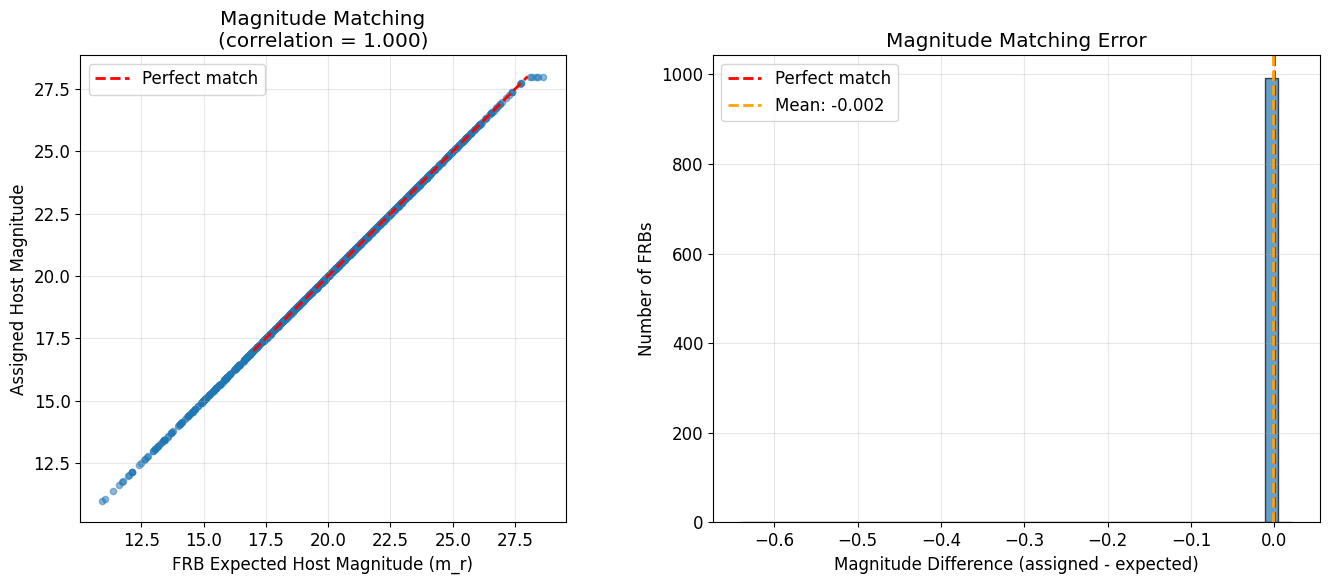

Step 8: Magnitude Matching Verification

The assignment algorithm matches FRBs to galaxies by magnitude. Let’s verify that brighter FRBs are indeed assigned to brighter galaxies.

[17]:

# Get original FRB magnitudes (before assignment)
# Match by FRB_ID
frb_mags = []
host_mags = []

ss = 0
for _, row in assignments.iterrows():
    #print(ss)
    frb_mag = frbs.iloc[int(row['FRB_ID'])]['m_r']
    frb_mags.append(frb_mag)
    host_mags.append(row['mag'])
    ss += 1

frb_mags = np.array(frb_mags)
host_mags = np.array(host_mags)

# Calculate correlation
correlation = np.corrcoef(frb_mags, host_mags)[0, 1]
print(f"Correlation between FRB m_r and host m_r: {correlation:.3f}")
print("(Should be close to 1.0, indicating successful magnitude matching)")

Correlation between FRB m_r and host m_r: 1.000
(Should be close to 1.0, indicating successful magnitude matching)

[18]:

fig, axes = plt.subplots(1, 2, figsize=(14, 6))

# Scatter plot
ax = axes[0]
ax.scatter(frb_mags, host_mags, alpha=0.5, s=20)
ax.plot([17, 28], [17, 28], 'r--', linewidth=2, label='Perfect match')
ax.set_xlabel('FRB Expected Host Magnitude (m_r)')
ax.set_ylabel('Assigned Host Magnitude')
ax.set_title(f'Magnitude Matching\n(correlation = {correlation:.3f})')
ax.legend()
ax.grid(alpha=0.3)
ax.set_aspect('equal')

# Difference histogram
ax = axes[1]
mag_diff = host_mags - frb_mags
ax.hist(mag_diff, bins=40, alpha=0.7, edgecolor='black')
ax.axvline(0, color='red', linestyle='--', linewidth=2, label='Perfect match')
ax.axvline(mag_diff.mean(), color='orange', linestyle='--', linewidth=2,
           label=f'Mean: {mag_diff.mean():.3f}')
ax.set_xlabel('Magnitude Difference (assigned - expected)')
ax.set_ylabel('Number of FRBs')
ax.set_title('Magnitude Matching Error')
ax.legend()
ax.grid(alpha=0.3)

plt.tight_layout()
plt.show()

print(f"\nMagnitude matching statistics:")
print(f"  Mean difference:   {mag_diff.mean():.3f} mag")
print(f"  Median difference: {np.median(mag_diff):.3f} mag")
print(f"  Std deviation:     {mag_diff.std():.3f} mag")
../_images/nb_Simulate_Assign_FRBs_29_0.png

Magnitude matching statistics:
  Mean difference:   -0.002 mag
  Median difference: 0.000 mag
  Std deviation:     0.027 mag

Step 9: Saving Results

Save the assignment results for later use or PATH analysis.

[19]:

# Save to CSV
# assignments.to_csv('frb_host_assignments.csv', index=False)
print("Example: Save to CSV")
print("  assignments.to_csv('frb_host_assignments.csv', index=False)")

# Save to Parquet (more efficient for large datasets)
# assignments.to_parquet('frb_host_assignments.parquet', index=False)
print("\nExample: Save to Parquet")
print("  assignments.to_parquet('frb_host_assignments.parquet', index=False)")

print("\nOutput columns:")
for col in assignments.columns:
    print(f"  - {col}")

Example: Save to CSV
  assignments.to_csv('frb_host_assignments.csv', index=False)

Example: Save to Parquet
  assignments.to_parquet('frb_host_assignments.parquet', index=False)

Output columns:
  - ra
  - dec
  - true_ra
  - true_dec
  - gal_ID
  - gal_off
  - mag
  - half_light
  - loc_off
  - FRB_ID
  - a
  - b
  - PA

Summary

This notebook demonstrated the complete workflow for assigning FRBs to host galaxies:

  1. Generate FRBs: Create realistic FRB populations with generate_frbs()

  2. Load catalog: Use real galaxy catalog (HSC/DECaLs/HECATE) if available, otherwise mock

  3. Assign hosts: Use assign_frbs_to_hosts() with appropriate localization

  4. Analyze results: Examine offset distributions and host properties

  5. Compare surveys: Test different localization scenarios

  6. Verify matching: Confirm magnitude-based assignment worked correctly

Using Real Data

This notebook automatically uses the real combined HSC/DECaLs/HECATE galaxy catalog if available:

  • Set environment variable: export FRB_APATH=/path/to/data/Catalogs

  • Catalog file: combined_HSC_DECaLs_HECATE_galaxies_hecatecut.parquet

  • Contains ~2.3 million galaxies from real surveys

  • Falls back to mock catalog if not available

Key Parameters

  • localization: (a, b, PA) - Error ellipse defining localization precision

  • mag_range: (min, max) - Magnitude range for FRB filtering

  • scale: Controls galaxy offset concentration (default: 2.0)

  • seed: Random seed for reproducibility

Output

The assignments DataFrame contains:

  • Observed and true FRB coordinates

  • Host galaxy properties

  • Offset statistics

  • Localization parameters

Next Steps

  • Run PATH analysis on the assigned FRBs

  • Compare assigned hosts with PATH posteriors

  • Study systematic biases in host association

  • Test different survey strategies

  • Apply to real FRB observations

[ ]:
